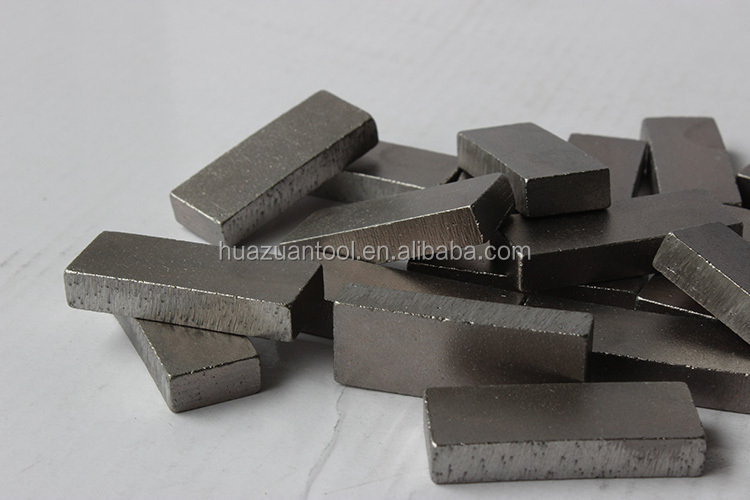

DIAMOND SEGMENT FOR STONEDiamond Segments Diamond segment is one part of diamond saw blade, gangsaw blade ,ect. It is one of most popular slab cutting and grinding tools. According to practical requirements, we have developed different types of blades and segments, such as for general use, for granite, for marble and for artificial stone etc.We can also supply other individual segments according to different equipment, different processed material, and different requirement for processing precision from our customers.Applicable MachineBridge Cutting MachineEdge Cutting MachineGrinding machineCore drill bits machineApplicationGranite ,Marble,Sandstone,Limestone,Concrete,Asphalt,Refractory Brick.SpecificationsΦ250-Φ3500
1.Excellent quality raw material2.We promise that each of them can reach to 30%-40% concentration of diamond3.Each individual operation is supervised by expert4.Can adjust lifespan according to you needs on the basis of enough sharpness *Other specifications are available upon request. Dimenssion Sheet
Out Diameter | Bore Diameter(mm) | Dimension of segment (mm) | NO. of Teeth |
Inch | mm | Length | Thickness | Height |
10'' | 250 | 20/50/60 | 40 | 2.6/2.8 | 8,10,12 | 17 |
12'' | 300 | 20/50/60 | 40 | 2.8/3.0 | 8,10,12 | 21 |
14'' | 350 | 20/50/60 | 40 | 3.0/3.2 | 8,10,12 | 24 |
16'' | 400 | 20/50/60 | 40 | 3.4/3.6 | 8,10,12 | 28 |
18'' | 450 | 20/50/60 | 40 | 3.8/4.2 | 8,10,12 | 32 |
20'' | 500 | 20/50/60 | 40 | 4.0/4.2 | 8,10,12 | 36 |
22'' | 550 | 20/50/60 | 40 | 4.6/4.8 | 8,10,12 | 40 |
24'' | 600 | 20/50/60 | 40 | 4.6/4.8 | 8,10,12 | 42 |
26'' | 650 | 20/50/60 | 40 | 5.0/5.2 | 8,10,12 | 46 |
28'' | 700 | 20/50/60 | 40 | 5.0/5.2 | 8,10,12 | 50 |
30'' | 750 | 20/50/60 | 40 | 5.2/5.6 | 8,10,12 | 54 |
32'' | 800 | 50/60/80 | 40 | 5.5/6.0 | 8,10,12 | 57 |
Single/Mulit blades segment dimenssion |
36'' | 900 | 50/60/80 | 24 | 6.0/6.8 | 12/13/15 | 64 |
40'' | 1000 | 50/60/80 | 24 | 6.7/7.0 | 12/13/15 | 70 |
48'' | 1200 | 50/60/80 | 24 | 6.5/7.5 | 12/13/15 | 80 |
52'' | 1300 | 50/60/80 | 24 | 7.0/7.6 | 12/13/15 | 88 |
56'' | 1400 | 50/60/80 | 24 | 8.2/8.8 | 12/13/15 | 92 |
64'' | 1600 | 50/60/80 | 24 | 8.4/9.0 | 12/13/15/20 | 108 |
72'' | 1800 | 50/60/80 | 24 | 9.1/9.7 | 12/13/15/20 | 120 |
80'' | 2000 | 50/60/80 | 24 | 10.5/11 | 12/13/15/20 | 128 |
88'' | 2200 | 50/60/80 | 24 | 10.5/11 | 12/13/15/20 | 132 |
100'' | 2500 | 50/60/80 | 24 | 11/12 | 12/13/15/20 | 140 |
120'' | 3000 | 50/60/80 | 24 | 11.5/12.5 | 12/13/15/20 | 160 |
140'' | 3500 | 50/60/80 | 24 | 12/12.5 | 12/13/15/20 | 180 |
WORK FLOW
PRODUCT OPERATION
